Six Color Fully Automatic Screen Printing Machine For Cosmetic And Food Containers
Product Overview

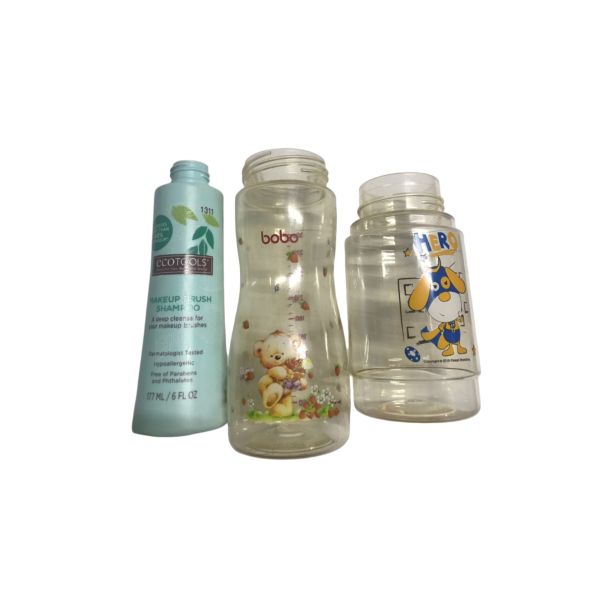

Our arc surface printing machine is suitable for cylindrical, elliptical cylindrical containers, compatible with plastic, glass, metal materials, and applicable to food, beverage, cosmetics industries.
With PLC and high-performance touch screen, it realizes full intelligent operation. The imported high-speed transmission system supports stepless speed change, synchronous transmission, automatic alignment and no-bottle no-printing, ensuring stable printing quality.
Main Functions
- Suitable for inclined platform feeding conveyor belt (smooth feeding)
- Automatic loading turning (reducing manual operation, high accuracy)
- Flame surface treatment (enhancing ink adhesion)
- Inverter-controlled stepless transmission (flexible speed adjustment)
- Automatic pre-alignment (avoiding printing deviation)
- No-bottle no-printing system (identifies transparent/black bottles, saves ink)
- US HONOVIA UV curing system (fast curing, high gloss, wear-resistant)
Main Configuration
World-renowned brand components ensure machine stability and durability:
- Main motor: SITI (Italy)
- PLC: OMRON/Panasonic (Japan)
- Touchscreen: WECON (China)
- Photoelectric switch: OMRON (Japan)
- Button switch: NHD (Taiwan)
- Contactors: SCHNEIDER
- Relays: OMRON (Japan)
- Inverter: Panasonic (Japan)
- UV curing system: HONOVIA (USA)
- Pneumatic components: SMC (Japan)/AirTAC
Technical Parameters
| Item |
Specification |
| Circular printing diameter |
ф20mm~ф100mm (actual product-based) |
| Circular printing height |
20mm~270mm |
| Flat printing diameters |
R20mm~R180mm |
| Flat printing height |
20mm~270mm |
| Fastest printing speeds |
3000-3600Pcs/h (circular); 3000-4000Pcs/h (flat) |
| Power Requirements |
AC380V 3Phase 50Hz/60Hz |
| Rated power |
Main:7.5KW; Auxiliary:24KW |
| Air pressure requirement |
5-8 bar |
| Machine size |
≈L10700*W2000*H2100mm (actual-based) |
| Export wooden box size |
≈(L2900*W2300*H2250mm)+4*(L2300*W2300*H2250mm) |
| Mechanical weight |
7500KG |
| Wooden crate weight |
1120KG |
Core Advantages
- Wide Compatibility: Suitable for various shapes and materials of containers.
- Intelligent Operation: PLC + touch screen, full automatic, labor-saving.
- High-Speed & Stable: Imported transmission, stable and efficient.
- Energy-Saving: No-bottle no-printing + energy-saving UV system.
- Durable: World-renowned components, low failure rate.
About us
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industrys suchs as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.
We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.
FAQ
- Q. How long is the machine's warranty period? A.We offer a 2-year warranty and long-term service
- Q. What technical support services are provided after purchase? A.We provide on-site installation service and professional engineer training
- Q. How will you help us resolve after-sales repair issues if the machine malfunctions? A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
- Q. What inks does the machine support? A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
- Q.What certifications can you provide? A.We have ISO9001, SGS, and RoHS certifications
